Features

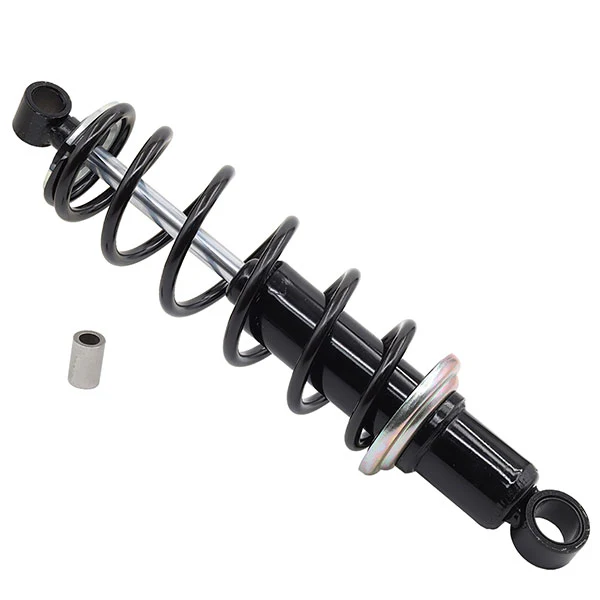

061-3019

• SPX Shocks are manufactured with OEM specs
• Heavy duty design
• Ready to mount out of the box
• We recommend referencing the OEM service manual for installation & safety information
• Nuts & bolts must be torqued to the OEM specified settings
• Nuts & bolts should also be periodically checked & lubed or tightened if needed
• Open: 317.3 Mm (12.49”) , Stroke:99mm (3.90”) Tube: 38.1 Mm (1.50”), Shaft O.D:12.5mm (0.49”) Spring:O.D.: 75mm (2.95”)/Wire O.D.:7.5mm (0.29”) Top/Bottom Hole: 15.9/22.5mm (0.63” / 0.89”) Top/Bottom Width: 22.8/18.7mm (0.87” / 0.74”) With 1pc Bushing

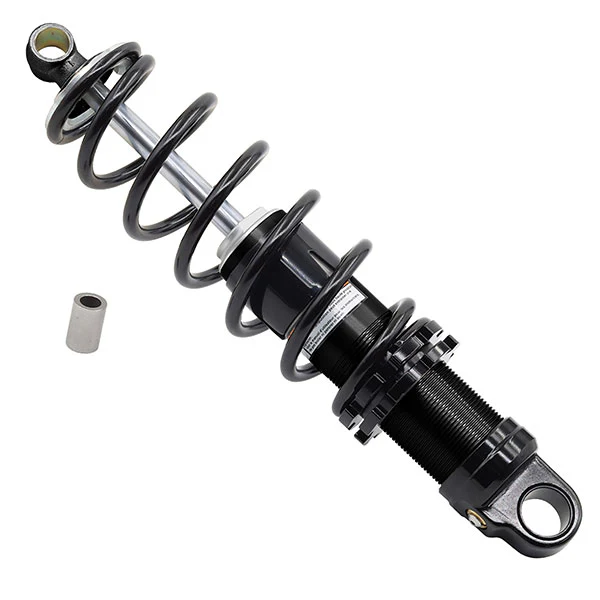

061-3020

• SPX Shocks are manufactured with OEM specs
• Heavy duty design
• Ready to mount out of the box
• We recommend referencing the OEM service manual for installation & safety information
• Nuts & bolts must be torqued to the OEM specified settings
• Nuts & bolts should also be periodically checked & lubed or tightened if needed
• Open: 316mm (12.44”) , Stroke:99mm (3.90”)
  Tube: 42.6mm (1.68”) , Shaft O.D: 12.6mm (0.50”) Spring:o.D.:75mm (2.95”)/Wire O.D.: 7.5mm. (0.29”), Top/Bottom Hole: 16/22.5mm (0.63” / 0.89”), Top/Bottom Width: 22.5/18.5mm (0.89” / 0.73”), With 1pc Bushing
