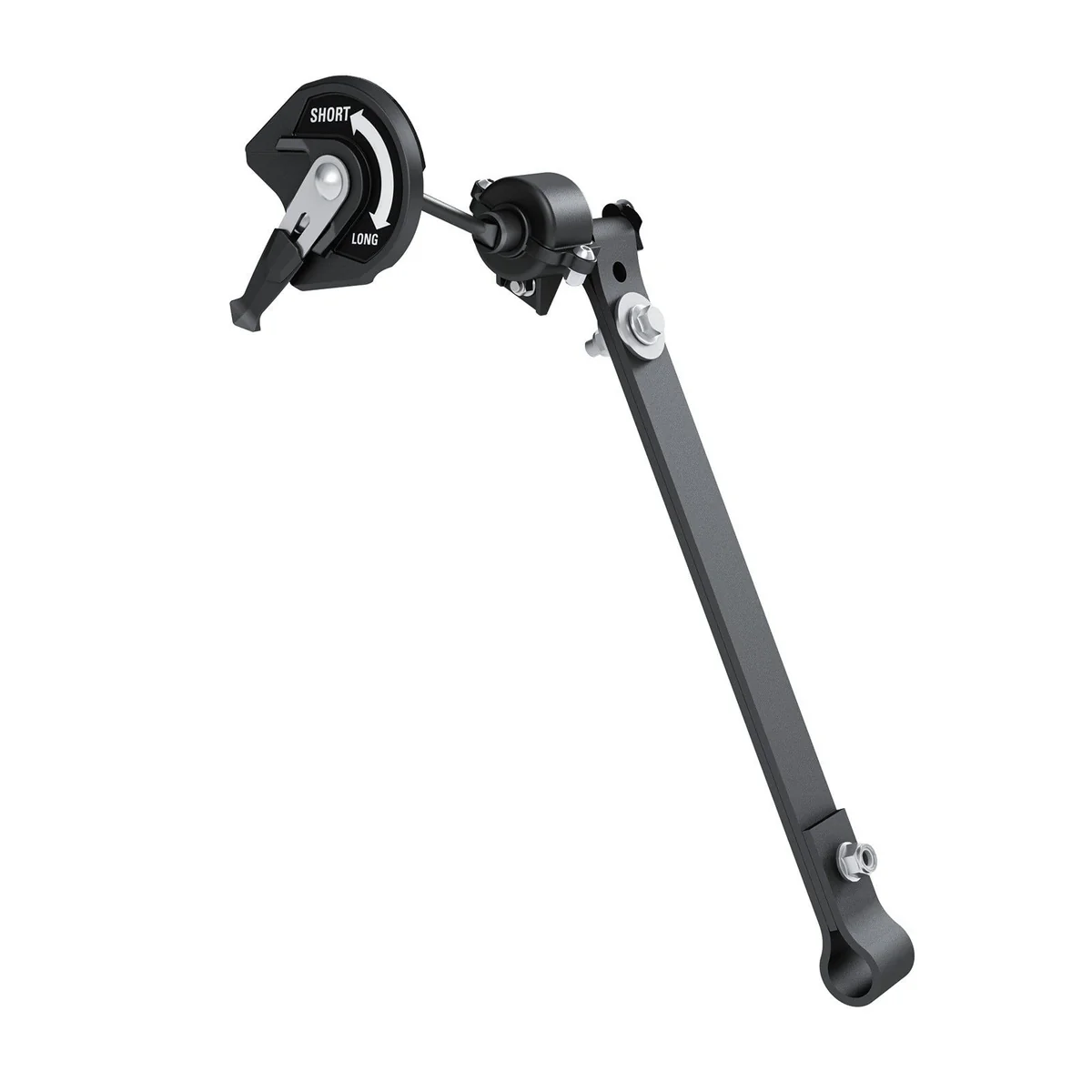

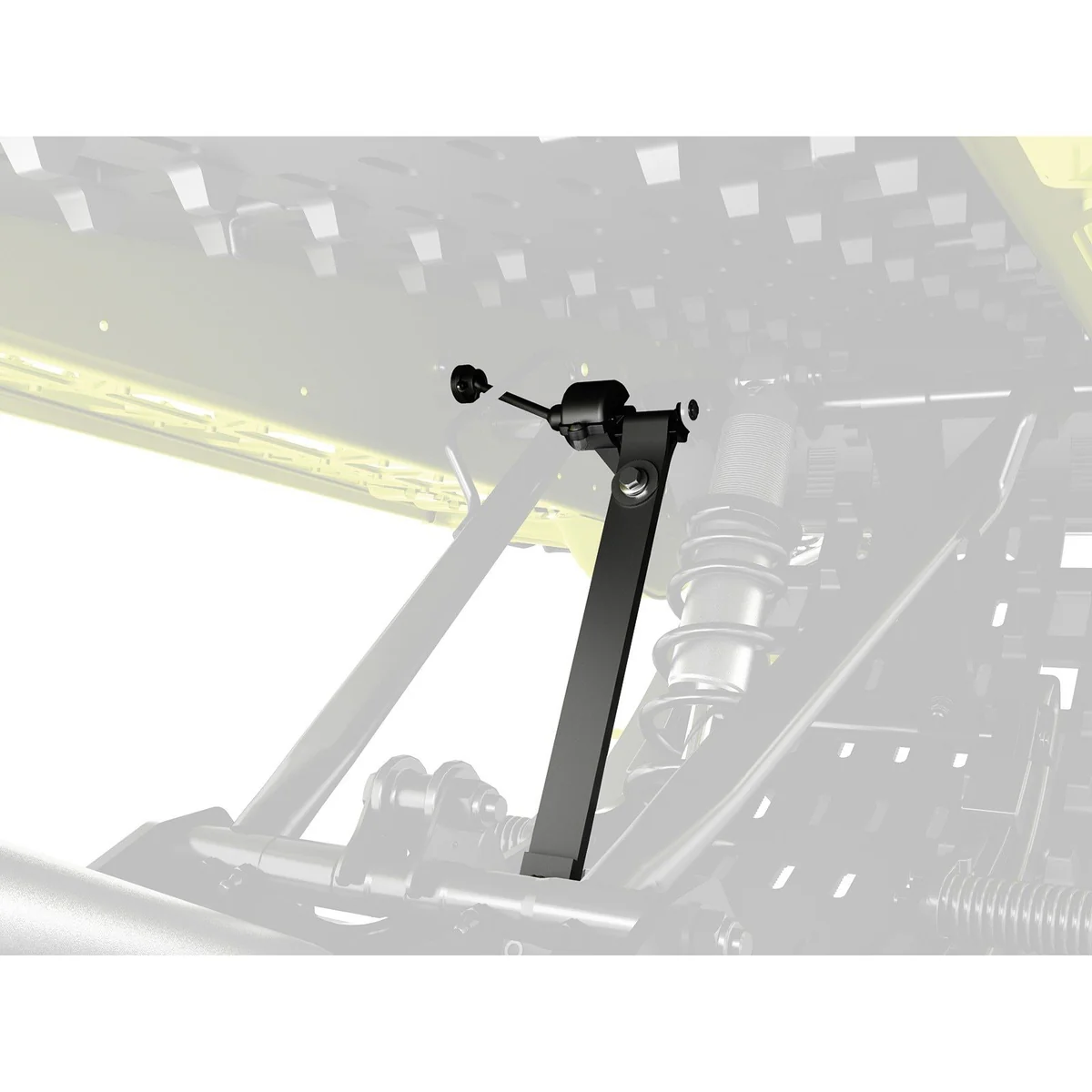

Ski-Doo tMotion Adjustable Limiter
860201105:
- Quickly change limiter strap length by flipping a lever, to tune ride and handling to snow conditions and terrain.
- Shortening keeps the front end lower and improves track approach angle.
- Longer increases transfer and lifts the front end higher.
- Adjustment range is equivalent to 2 holes on a conventional strap (1.3”/34 mm).
- Slim, non-intrusive design.
- 2 settings to choose from: holes 3 to 5 or 2 to 4 (compared to conventional strap hole positions).
- US patent 9022156.
- Not compatible with Tunnel Reinforcement (860201636, 860201638, 860201730, 860201783, 860201734)
860201492 & 860201861:
- Quickly change limiter strap length by flipping a lever, to tune ride and handling to snow conditions and terrain.
- Shortening keeps the front end lower and improves track approach angle.
- Longer increases transfer and lifts the front end higher.
- Adjustment is equivalent to 2 holes on a conventional strap (1.3”/34 mm).
- Slim, non-intrusive design.
- 2 initial settings to choose from: holes 3 to 5 or 2 to 4 (compared to conventional strap hole positions).
- US patent 9022156.
860201349:
- Includes front arm and all the parts and features of the 860201105 kit.
Fits on:
860201105: REV-XM 2016 & up
860201492: REV Gen4 (Narrow) with tMotion and cMotion rear suspensions, 2018 and prior
860201861: REV Gen4 (Narrow) with tMotion and cMotion rear suspensions (except Freeride 146" & Backcountry X-RS)
860201349: Retro Fit Kit REV-XM 2015 & prior
860202439 : REV Gen5 (Deep Snow)
Details & Craftsmanship
Every detail has been carefully considered to bring you the perfect product.
Description
Ski-Doo tMotion Adjustable Limiter
860201105:
- Quickly change limiter strap length by flipping a lever, to tune ride and handling to snow conditions and terrain.
- Shortening keeps the front end lower and improves track approach angle.
- Longer increases transfer and lifts the front end higher.
- Adjustment range is equivalent to 2 holes on a conventional strap (1.3”/34 mm).
- Slim, non-intrusive design.
- 2 settings to choose from: holes 3 to 5 or 2 to 4 (compared to conventional strap hole positions).
- US patent 9022156.
- Not compatible with Tunnel Reinforcement (860201636, 860201638, 860201730, 860201783, 860201734)
860201492 & 860201861:
- Quickly change limiter strap length by flipping a lever, to tune ride and handling to snow conditions and terrain.
- Shortening keeps the front end lower and improves track approach angle.
- Longer increases transfer and lifts the front end higher.
- Adjustment is equivalent to 2 holes on a conventional strap (1.3”/34 mm).
- Slim, non-intrusive design.
- 2 initial settings to choose from: holes 3 to 5 or 2 to 4 (compared to conventional strap hole positions).
- US patent 9022156.
860201349:
- Includes front arm and all the parts and features of the 860201105 kit.
Fits on:
860201105: REV-XM 2016 & up
860201492: REV Gen4 (Narrow) with tMotion and cMotion rear suspensions, 2018 and prior
860201861: REV Gen4 (Narrow) with tMotion and cMotion rear suspensions (except Freeride 146" & Backcountry X-RS)
860201349: Retro Fit Kit REV-XM 2015 & prior
860202439 : REV Gen5 (Deep Snow)
