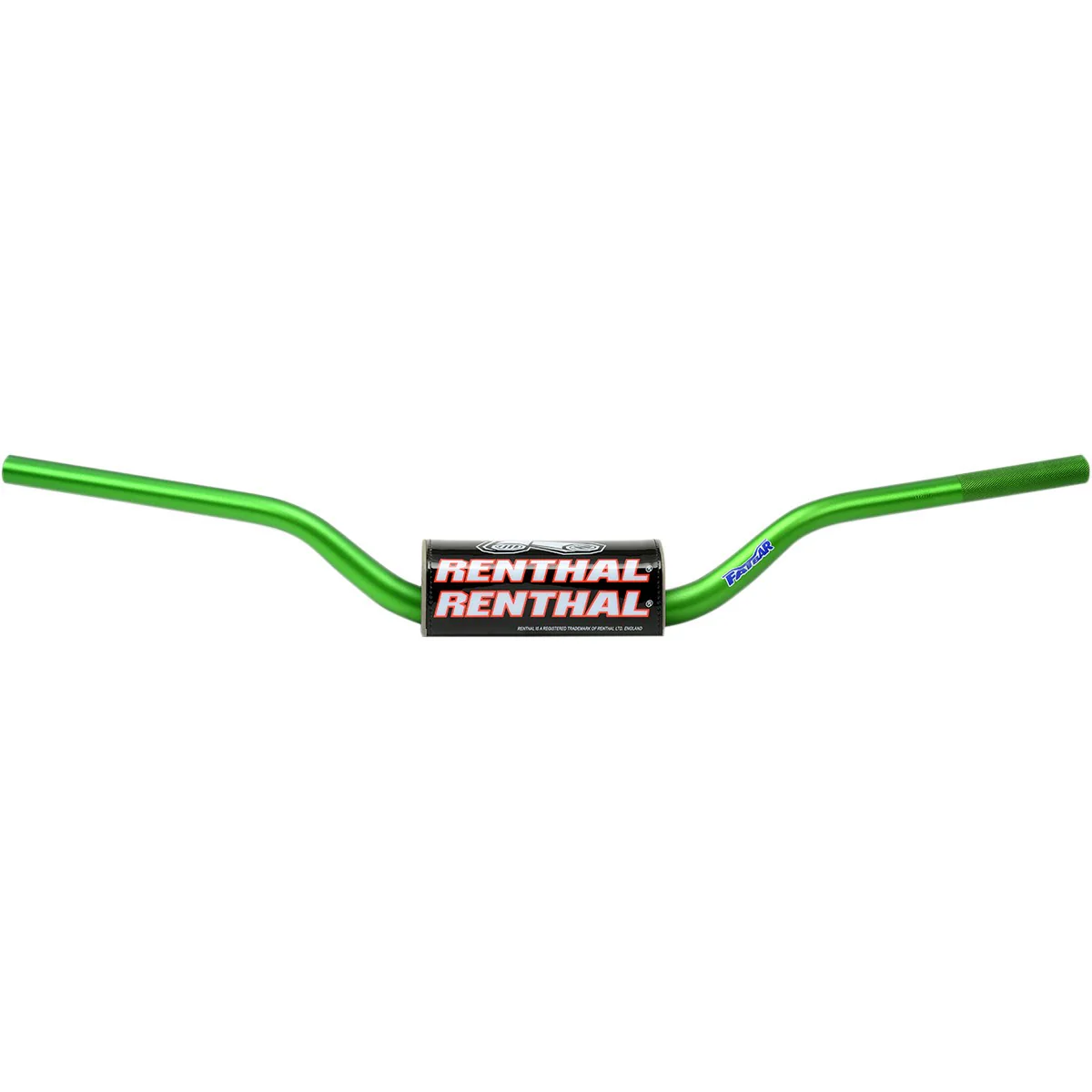

Renthal Fatbar 1-1/8" Handlebar

Renthal Fatbar Handlebars

The Renthal Fatbar features a tapered wall profile, measuring 1-1/8" at the clamping area and 7/8" at the bar ends. This unique design removes the need for a crossbrace, allowing the bar to flex and absorb impacts better than standard 7/8" bars. The intentional bar flex leads to increased rider comfort and less fatigue, while the oversize diameter clamping area maintains bar integrity. The Renthal Fatbar is constructed entirely of 7010 T6 aluminum for reduced vibration, and has a shot peened finish for maximum bar life and durability.

Features:

• Braceless 1-1/8" bar design reduces weight, while maintaining strength
• Constructed of 7010 T6 aluminum for reduced vibration
• Shot peened for increased fatigue life and maximum durability
• Knurled clutch end for minimal grip slippage
• Fatbar pad included
• Positioning grid for accurate adjustments
• Anodized finish for maximum corrosion resistance

Type	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)
CR High	805	97	64	115	65	200
Enduro	781	102	68	115	54	189
KTM SX/SX-F 125-450 13+	811	92	52	117	52	222
KTM SX 85 13+	779	88	53	122	50	200
KTM SX/SX-F 09-12 Suzuki RM/RMZ 06-13	806	85	51	125	56	190
McGrath / Short KTM SX/SX-F/XC-F 15+	813	78	42	150	54	200
RC High	802	120	85	105	56	190
RC Honda CR/CRF 04-13 Kawasaki KX/KXF 06-13	804	104	64	105	54	188
RC Mini / 85cc	754	112	77	85	52	177
Reed / Windham	800	98	74	100	55	187
Villopoto / Stewart	802	93	50	100	55	177
Yamaha YZ/YZF 07+	801	89	59	125	56	193
KTM High	805	95	68	130	42	180
KTM Low	808	83	53	140	41	200
