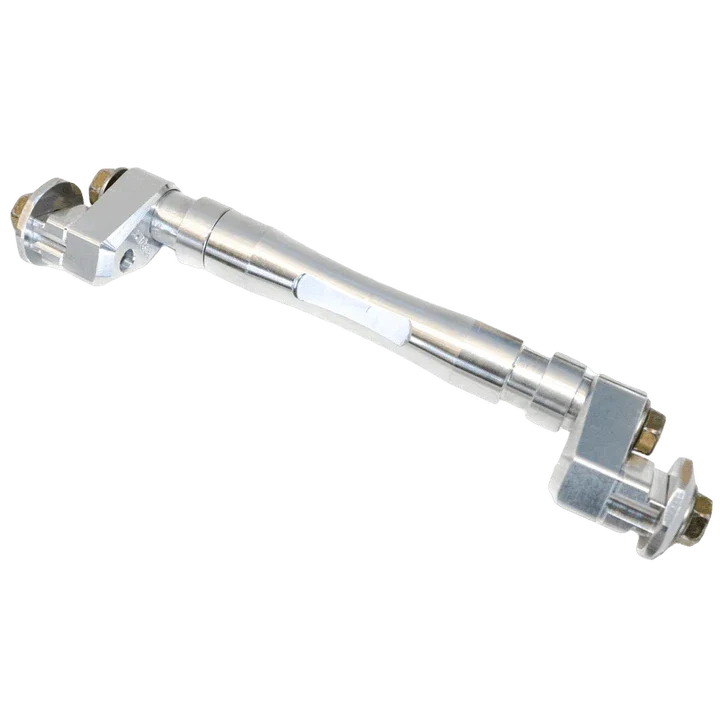

Ice Age Offset Axle Kit

Ice Age Offset Axle Kit

Our offset axle offers exceptional strength while maintaining a competitive weight to stock. The combination of a high quality CNC aluminum part and thoroughly tested axle makes this strong yet trim piece run 9" wheels without hesitation. We did not cut any corners on strength but worked to remove any unnecessary material to keep the weight down.

Kit comes in 2 offset sizes. from 7.25" to 9" or 8" to 9":

The first dimension is your stock wheel diameter, and the second dimension is your desired wheel diameter.



All Offset axles are available exclusively in raw aluminum silver, no custom color options are available.



Adjuster Slot Height Guide:

- Polaris RMK/Khaos 2003-current w/ STOCK rails  : 1"Slot, 7.25" to 9" offset

- Polaris RMK/Khaos 2003-current w/ ICEAGE rails : 1" Slot,  8" to 9" offset

- Ski-Doo Gen5 Summit 2023+ (except 146 models which cannot use 9" wheels) - 20mm Slot, 8 to 9" offset

- LYNX Shredder 2023+ : 20mm Slot, 8 to 9" offset

- Ski Doo Gen4 Summit 154" or longer 2017-2022 : 1/2" Slot, 8" to 9" offset

- Ski-Doo Gen4 Summit 146" 2017-2022 : 1" Slot,  8" to 9" offset

- LYNX Boondocker - 2022 : 1/2" Slot, 8" to 9" offset

- Arctic Cat 141"-162" twinrail 2012-2021 / Yamaha 141"-162" 2014-2021 : 1/2" Slot, 8" to 9" offset
